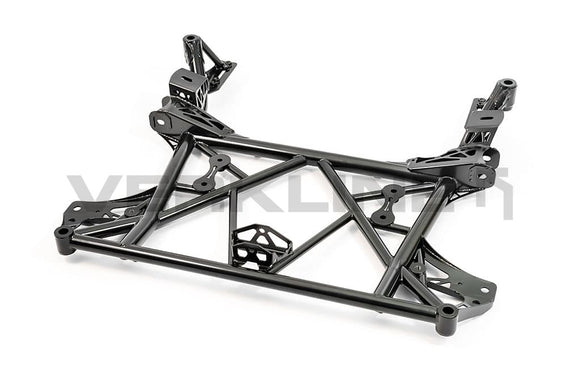

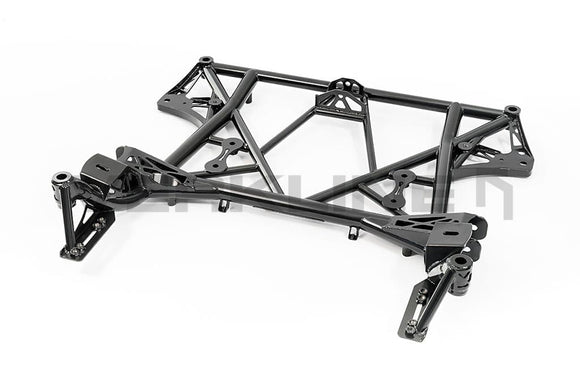

Nissan GT-R R35 Front Lightweight Tubular Subframe
Nissan GT-R R35 Front Lightweight Tubular Subframe-2
Nissan GT-R R35 Front Lightweight Tubular Subframe-3
Nissan GT-R R35 Front Lightweight Tubular Subframe-4

Boost Logic SKU: WAS-300

$4,399.00

1 in stock! Additional is backordered

A tubular lightweight replacement for the R35 GT-R's OEM front subframe, developed from a 3D scan, designed in CAD and FEM tested.

  • About 40% lighter than OEM: 13.1 kg (28.9 lbs) vs. 21.85 kg (48.2 lbs), saving roughly 19.3 lbs
  • T45 tubing imported from the UK and S355 sheet metal, hand TIG welded and powder coated
  • Two front anti-roll bar mounting points; the second sits 20mm further forward to clear dry sump piping
  • Extra room for extended oil pans; compatible with the Magnus dry sump kit
  • Better underbody access, with mounts for OEM or aftermarket undertrays
  • Works with OEM or aftermarket wishbones

Includes: front subframe, powder coated black. Other colors are available at extra cost; contact us with a RAL color number.

Fitment: Nissan R35 GT-R. Replaces OEM parts 54401-62B0B and 54401-38B0A. Dimensions: 964.8 x 844.5 x 168.8 mm.

For off-road, track and racing use only. Installation by a qualified workshop is recommended.
