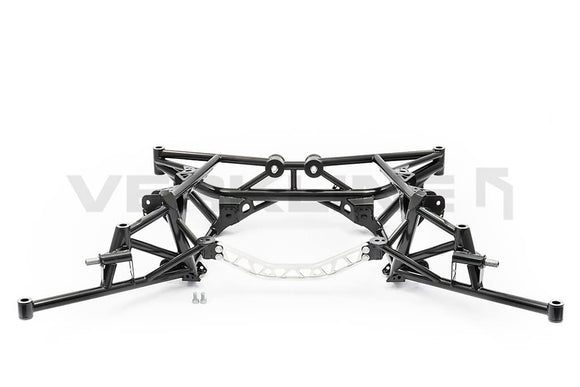

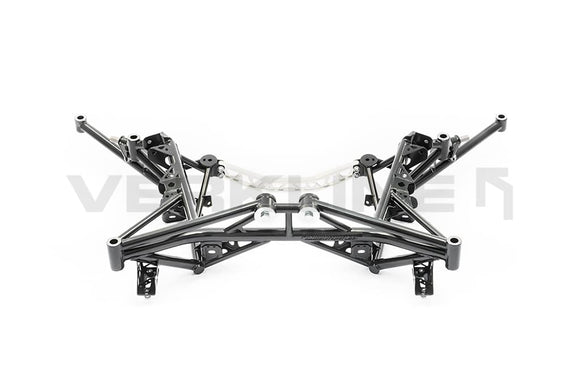

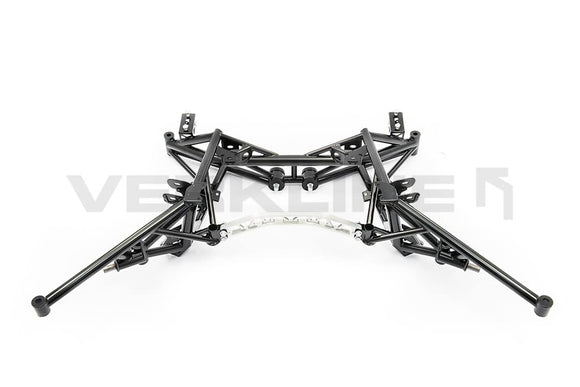

Nissan R35 GTR Rear Lightweight Tubular Subframe
Nissan R35 GTR Rear Lightweight Tubular Subframe-2
Nissan R35 GTR Rear Lightweight Tubular Subframe-3

Boost Logic SKU: WAS-301

$4,499.00

1 in stock! Additional is backordered

A tubular lightweight replacement for the R35 GT-R's OEM rear subframe.

  • About 47% lighter than OEM: 15.85 kg (34.9 lbs) vs. 30.10 kg (66.35 lbs)
  • T45 tubing and S355 sheet, TIG welded and powder coated
  • Anodized silver 7075 aluminum brace
  • Easier underbody access, with mounts for OEM or aftermarket undertrays
  • The gearbox can be dropped without removing the subframe (requires the Boost Logic Solid Transmission Mount Kit, sold separately)

Includes: black subframe, black polyurethane gearbox mounts with washers, silver aluminum brace with M10 bolts and nuts, M16 bolts for the gearbox mounts, and M12x1.25 bolts for the Boost Logic Solid Transmission Mount Kit. Other colors and solid aluminum gearbox mount inserts are available on request; contact us.

Fitment: Nissan R35 GT-R. Replaces OEM parts 55400-JF00B and 55400-KB50A. Dimensions: 1412 x 886 x 295 mm.

For off-road, track and racing use only. Installation by a qualified workshop is recommended.
