Total Racing Products Plug and Play 5 Bar MAP Sensor Conversion Kit - R35 GT-R
Total Racing Products Plug and Play 5 Bar MAP Sensor Conversion Kit - R35 GT-R
Total Racing Products Plug and Play 5 Bar MAP Sensor Conversion Kit - R35 GT-R
Total Racing Products Plug and Play 5 Bar MAP Sensor Conversion Kit - R35 GT-R

Total Racing Products SKU: TRP-5-BAR-MAP-SENSOR-CONVERSION-1

$239.99

1 in stock! Additional is backordered
Intake Manifold Type: Stock Intake Manifold

For R35 GT-Rs running upgraded turbos and tuned on Cobb, EcuTek, MoTeC or Syvecs. The harness plugs into the factory manifold pressure sensor connector and the other end plugs into the included TRP 5 bar (75 PSIa) pressure sensor.

Options

  • Stock Intake Manifold ($239.99): includes a black billet aluminum MAP sensor adapter that the TRP sensor threads into
  • Aftermarket Intake Manifold ($199.99): the sensor threads directly into a 1/8" NPT port on the manifold

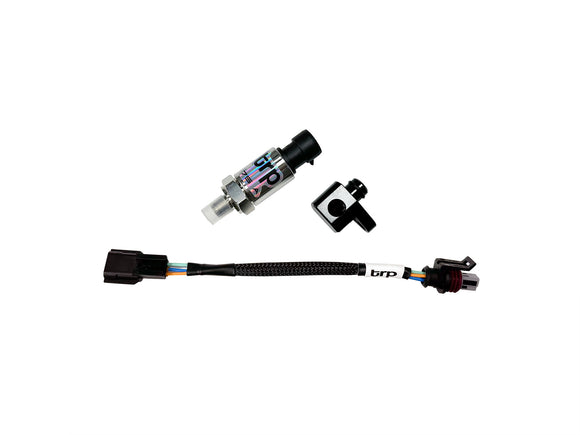

Included

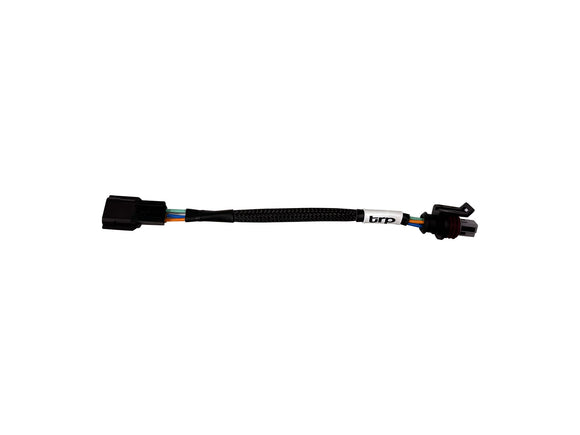

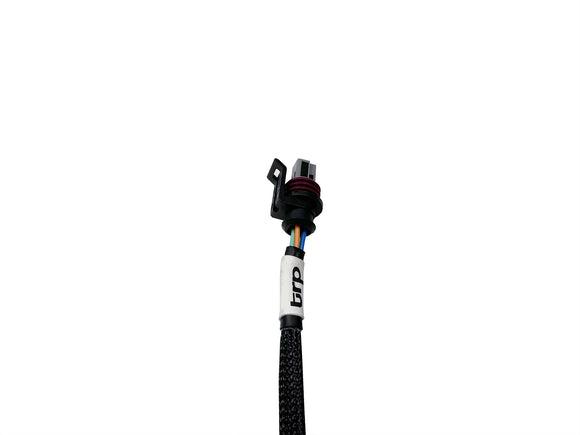

  • Plug-and-play harness

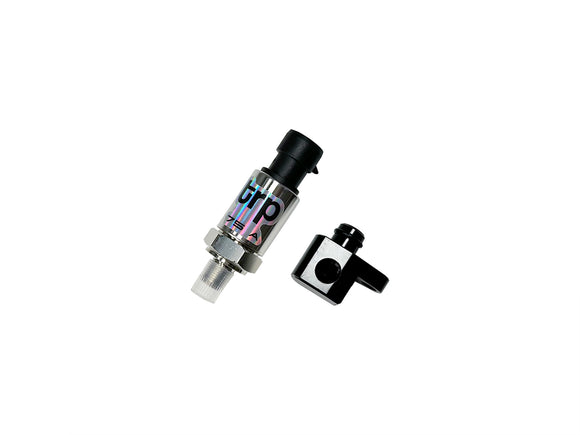

  • TRP 5 bar (75 PSIa) pressure sensor
  • Billet MAP sensor adapter (stock manifold option)

Install notes

  • Recommended: thread a 1/8" NPT-to-barb fitting into the adapter or manifold and remote-mount the sensor
  • Use a PTFE-based thread tape (such as Jaco ThreadPro) on threaded pressure sensors

Construction

  • TXL wire with XLPE insulation: heat, flame, gasoline, grease and acid resistant, rated from -40°F to 257°F
