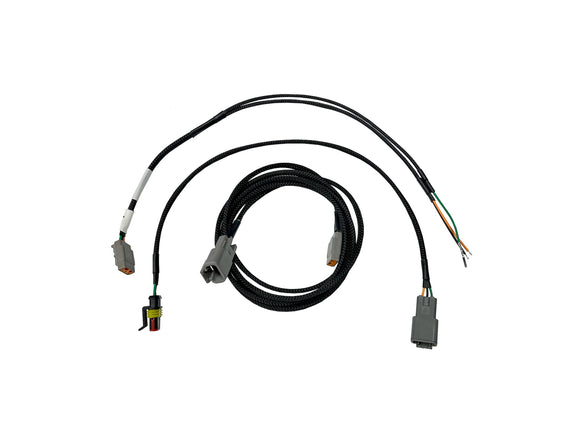

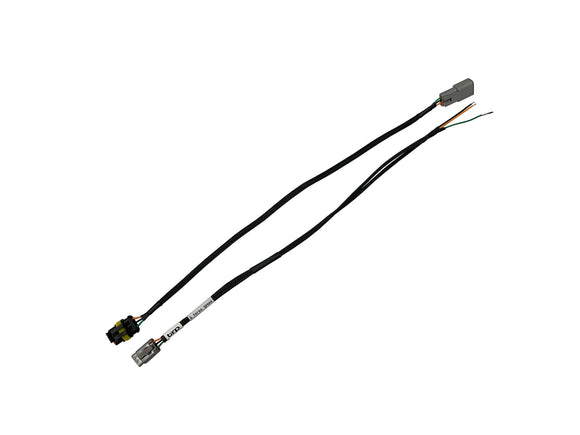

Garrett G-Series turbos are a popular choice for R35 GT-R turbo kits, and many tuners want to monitor shaft speed. This harness replaces the long harness from the G-Series speed sensor kit (which leaves one wire unterminated and includes an unused T'd connector) with a clean, MoTeC-ready harness.
Features
- Plugs into the Garrett speed sensor; the other end pins into the MoTeC
- Green (signal) wire pre-terminated with a MoTeC-compatible pin
- Orange (power) wire connects to any switched 5V source; black wire to ground
- Three lengths of wiring for easy engine removal during maintenance, long enough to reach the R35 MoTeC connectors
Requirements
- Garrett G-Series turbo speed sensor (P/N 781328-0004), sold separately
- MoTeC-equipped Nissan R35 GT-R
Construction
- TXL wire with XLPE insulation: heat, flame, gasoline, grease and acid resistant, rated from -40°F to 257°F
