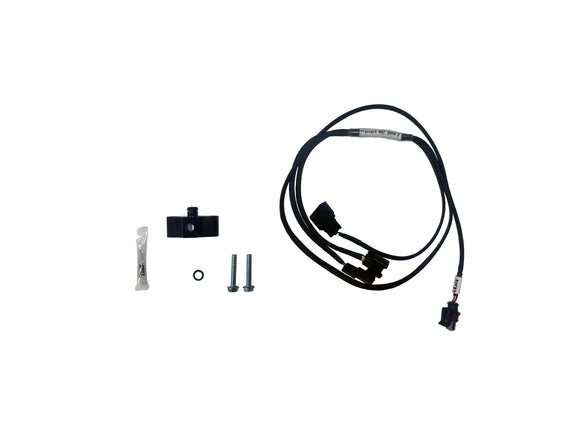

The Total Racing Products Plug and Play Fuel Pressure Kit adds fuel pressure monitoring to the factory ECU on an EcuTek-tuned Nissan R35 GT-R, with no custom harness and no splicing into factory wiring. Your tuner can log fuel pressure and use it for diagnostics, calibration and engine protection (where the calibration supports it).
Features
- Plug-and-play harnesses for stock or aftermarket fuel rails
- TXL wire with XLPE insulation: heat, flame, gasoline, grease and acid resistant, rated from -40°F to 257°F

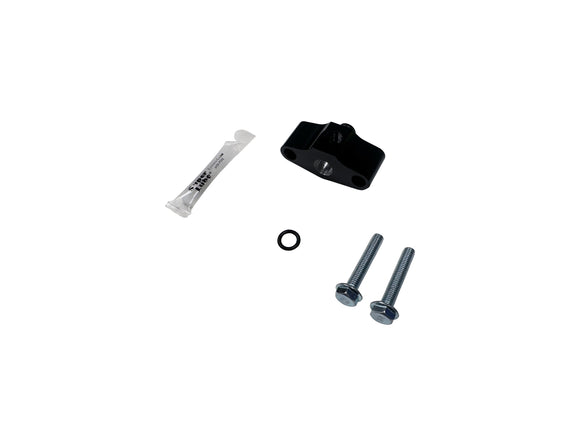

- Billet adapter for mounting the pressure sensor
- Buy with or without the TRP 150 PSIg pressure sensor if you already own a compatible sensor
Included
- Plug-and-play harness(es) for your fuel rail and input selection
- Billet pressure sensor adapter
- Speed density sensor (with the "Speed Density Harness + MAF Bank 1" input option)
- TRP 150 PSIg pressure sensor (when selected)
Options
- Fuel Rail Type: Aftermarket or Stock fuel rails
- Input Type: MAF Bank 2, or Speed Density Harness + MAF Bank 1
- TRP 150 PSIg Pressure Sensor: add for $100
Fitment and requirements
- Nissan R35 GT-R with an EcuTek-equipped ECU
- Requires a custom EcuTek calibration so the ECU can read the sensor; a qualified tuner should set up sensor scaling and any warnings, failsafes or protection strategies
- Seal the sensor threads with a high-quality PTFE thread tape and keep the fuel system free of contamination
